RJ45 Ethernet UAV Video Transmitter with AES Encryption Long Range
Specification:
| Power supply | DC12V/2.3A |
| TX output frequency | 350MHz (can be customized 300-3300MHz),step in 1MHz |
| RX output frequency | 555MHz (can be customized 300-3300MHz),step in 1MHz |
| RF bandwidth | 1/2/4/8MHz |
| RF power output | 37dBm |
| Encryption/decryption mode | AES128 bits(user-defined password) |
| Modulation | FDD-COFDM 2K |
| Transfer rate | 2x30 Mbit/s uplink and downlink |
| RF connector | N type *2 |
| Ethernet | Standard RJ45 port *2 |
| Serial port | RS232/RS485 serial port |
| Baud rate | 115200bps maximum |
| Two way audio | Aviation plug |
| LCD panel with keypad | Easy to set the related parameters |
| Dimension | 200*130*60mm |
| Weight | 3kg |
| Transmit distance | 2-5km NLOS /5-10km LOS |
Ethernet Radio Transceiver Description:
KP-FDD5W is a new COFDM modulation digital transmitter receiver integrated with using Frequency-division duplexing(FDD) technology, designed with dual -mode rf transceiver architecture and system which operate at different carrier frequencies ideal for long range communication in network solution.
Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications .With highly integrated embedded design, super-linear digital predistortion RF design and network,modulation and demodulation, full-band RF output All-in-One which help you complete the design of long-distance wireless links more conveniently and quickly.
It is mainly used for multi-channel video transmission required with RS232 signals, unmanned control systems with high standards, and intelligent control equipment wireless telecommunication.
- COFDM modulation,different carrier frequencies technology
- Low latency and great data send from end to end.
- Great transfer rate for uplink and downlink
- Transparent IP ethernet and serial data sync telecommunication
- Dual frequency is ideal for IP solution long-distance required
- Dynamic AES encryption 128bits
- Narrowband 1M/2M/4M/8MHz available
- Work well in NLOS fast moving condition
- Integrated design,super linear
- Small in size,lightweight and low consumption
- Simple operation,User easy to set the related parameters by LCD panel with keypads
FDD-COFDM Ethernet IP Radios Full Duplex Wireless Video Surveillance
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
- One-stop ODM/OEM solution;
- 24-hour technical support;
- Lifelong maintenance (Replacement parts will be charged after a year);
- Provide professional system design and construction;
- You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area for over 20 years, we are the source.
|
|

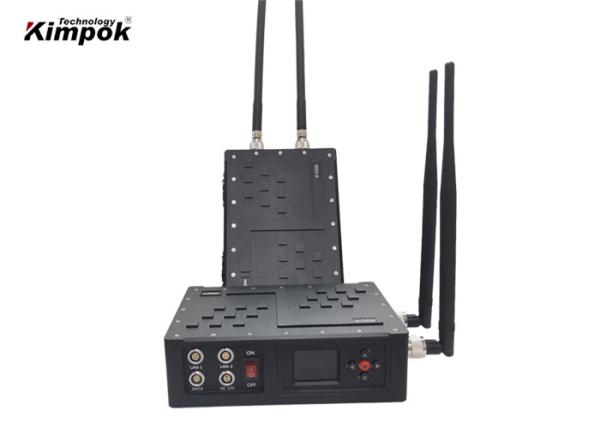

RJ45 Ethernet UAV Video Transmitter with AES Encryption Long Range Images
|
